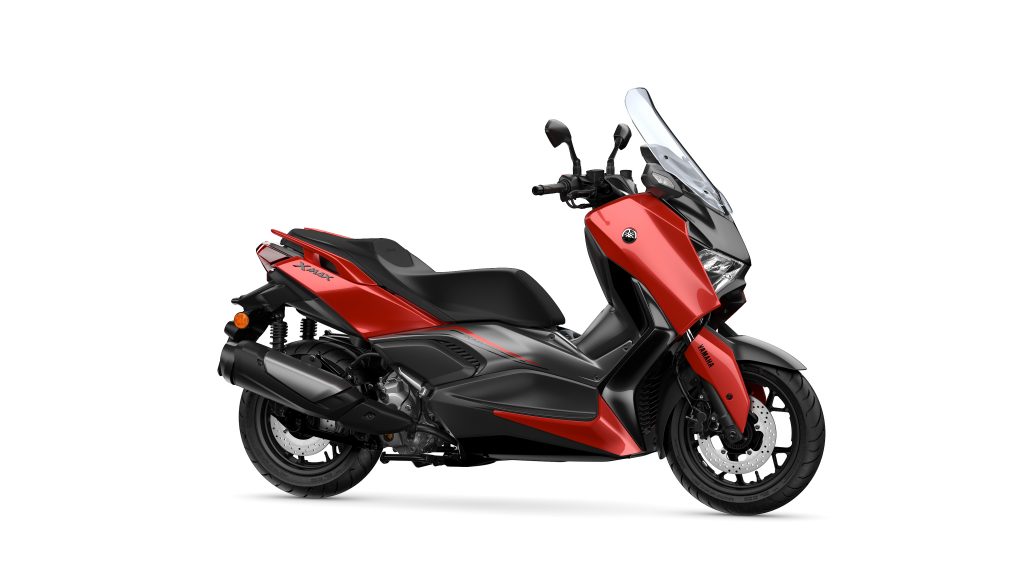

Introducing the redesigned Yamaha XMAX 250 now with enhanced MAX DNA and connectivity. A fresh new look featuring dynamic bodywork and distinctive X-shaped LED headlight are sure to turn heads. Get connected along your daily ride with Yamaha Y-Connect and Garmin Connectivity.
The new XMAX 250 is the embodiment of both style and innovation which represents one of Yamaha’s best Sport Automatic – Unlock the X-Factor!

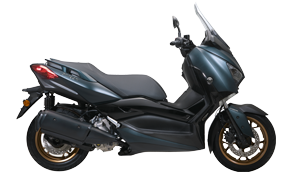

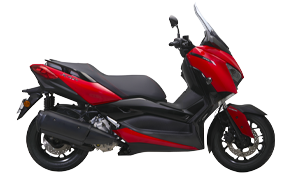

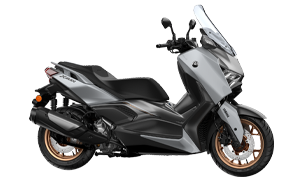

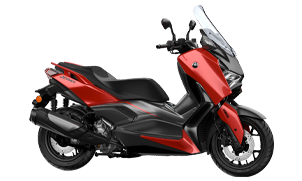

Colors Available :
FEATURES

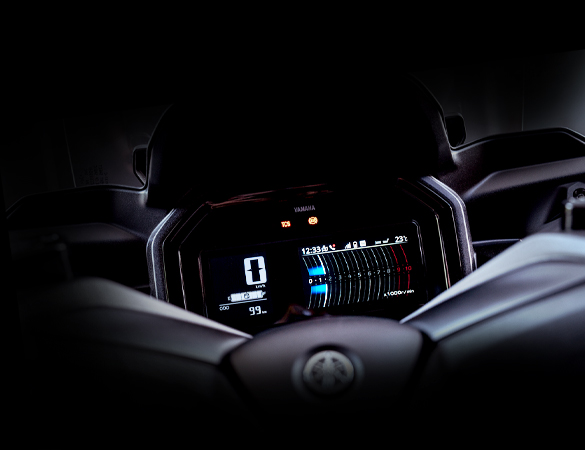

4.2-INCH TFT
INSTRUMENT CLUSTER
XMAX 250 is equipped with stylist new panels that display running information in a clear and easy to understand format.

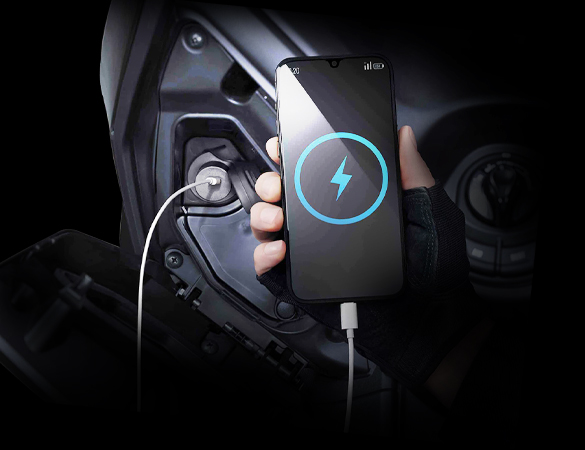

INFOTAINMENT AND CONNECTIVITY
ON THE GO
Featuring Yamaha Y-Connect and Garmin StreetCross connectivity to stay in touch with every ride. Enjoy riding navigation with just a touch of your finger.

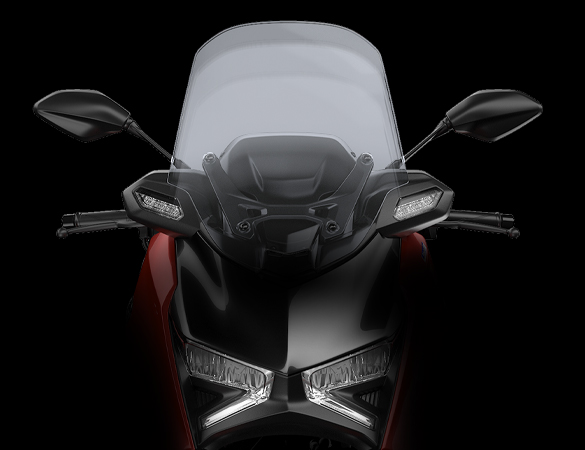

REDESIGNED X-SHAPED
LED LIGHTING

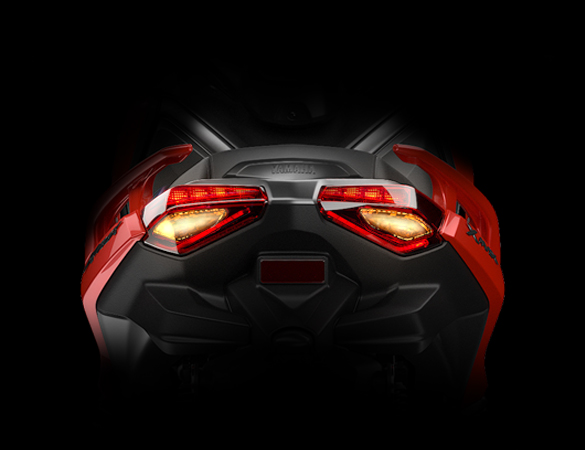

Featuring a radical new face in the form of an X-Shaped headlight for a modern look along with redesigned LED tail light that forms an X when brake lights are lit.
HIGH-MOUNTED
FRONT FLASHERS
Highly visible to other road users, the high-mounted LED front flashers add a great look to the XMAX 250.
THRILLING
PERFORMANCE
XMAX 250 is equipped with EURO4 250cc single cylinder liquid-cooled 4-stroke engine for your fast and efficient daily commuting.
COMFORTABLE
RIDE
Introducing a newly designed slimmer seat for an even more enjoyable ride.
ASSESSMENT
ICONS
MyMAP uses four recognizable icons to refer to its four main pillars of assessment – Compliance to United Nation Regulations , Conformity of Production, Safety Technology and Support Programme.
-
-
- Compliance to UN regulations
- Audit & Analysis on Conformity of Production
- Assessment of safety features & new technology
- Assessment of support programme provided to buyer
-

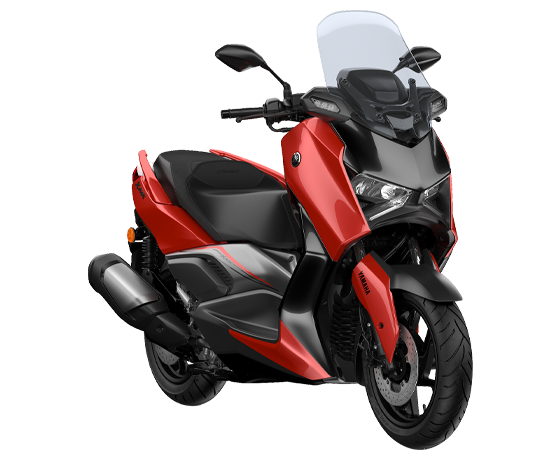

Specification
Motorcycle
Specification
Engine
| Type | Liquid-cooled, 4-stroke, SOHC, 4-valves | |
| Cylinders | Single Cylinder | |
| Displacement | 249.8 cc | |
| Bore x stroke | 70.0 mm x 64.9 mm | |
| Compression ratio | 10.5 : 1 | |
| Maximum power | 16.8 kW @ 7,000 rpm | |
| Maximum torque | 24.3 Nm @ 5,500 rpm | |
| Lubrication System | Wet Sump | |
| Fuel system | Fuel Injection | |
| Ignition system | TCI | |
| Starter system | Electric |
Transmission
| Transmission system | V-Belt Automatic | |
Chasis
| Overall length | 2,180 mm | |
| Overall width | 795 mm | |
| Overall height | 1,460 mm | |
| Seat height | 795 mm | |
| Wheelbase | 1,540 mm | |
| Minimum Ground Clearance | 135 mm | |
| Wet weight | 181 kg | |
| Fuel tank capacity | 13 L | |
Brakes

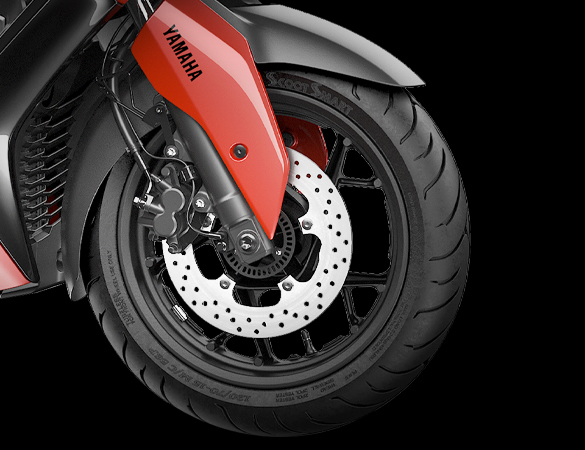

| Front brake | Hydraulic single disc, 267 mm | |
| Rear brake | Hydraulic single disc, 245 mm | |
Suspension
| Front Suspension Type | Telescopic forks | |
| Rear Suspension Type | Unit Swing | |
| Front travel | 110 mm | |
| Rear travel | 79 mm | |
Tires
| Front Tyre | 120/70-15 | |
| Rear Tyre | 140/70-14 | |
