TMAX

360° View

OVERVIEW

Supported by vast styling and luxurious level of comfort, the TMAX commands a dynamic presence while cruising on the busy city streets or long distance travelling. Equipped in an All-New 562cc engine accompanied by its lightweight chassis for smoother navigation, this sport scooter truly is Luxury in Motion.

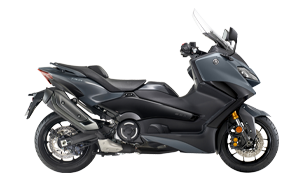

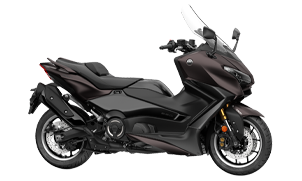

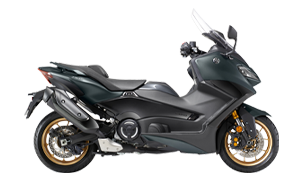

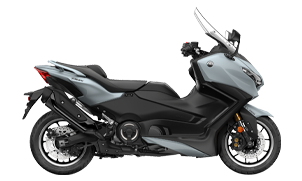

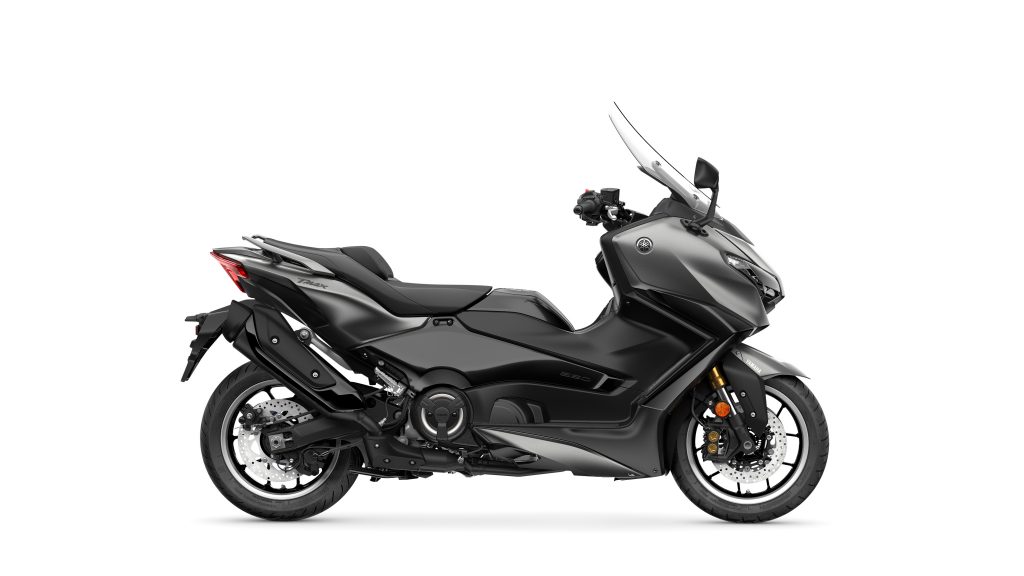

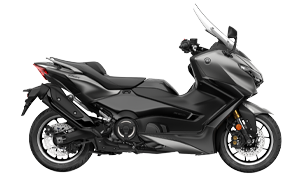

Colors Available :

Yamaha Network

FEATURES

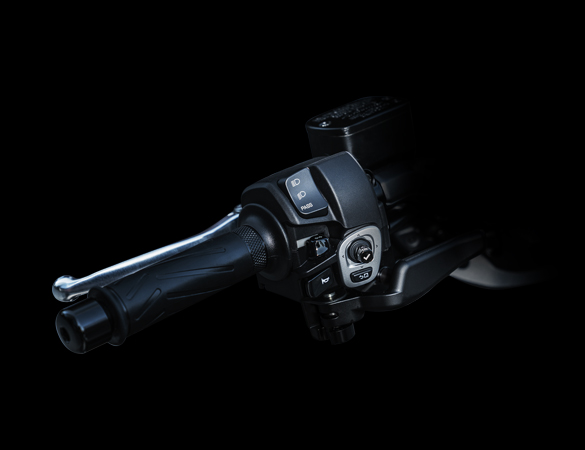

Innovative

Joystick

Left handlebar comes with the first of its kind Yamaha Joystick and menu button that allows for scrolling of its menu with a variety of electronic functions.

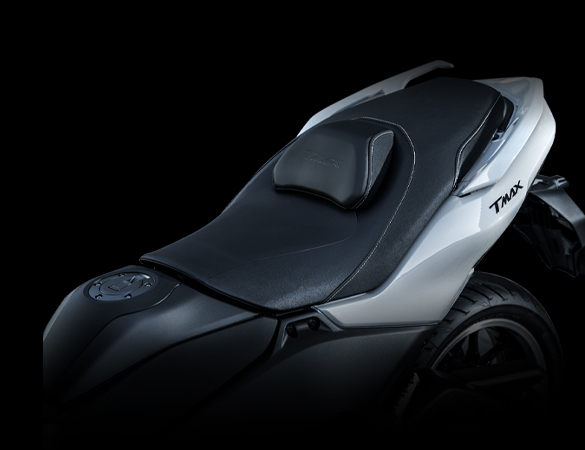

Adjustable

Backrest

A button that allows adjustment of the backrest to one of three preset positions.

Powerful, High Performance,

High Quality Engine

Premium, Powerful, Liquid cooled 562cc, parallel twin-cylinder, Euro 5, 4-stroke, 4-valve power unit.

Forged Aluminium

Handlebars

Provides clearer feedbacks from the front wheel.

Yamaha Chip-Controlled Throttle

(YCC-T) with APSG

Accelerator Position Sensor Grip (APSG) ride-by-wire for an excellent throttle feel.

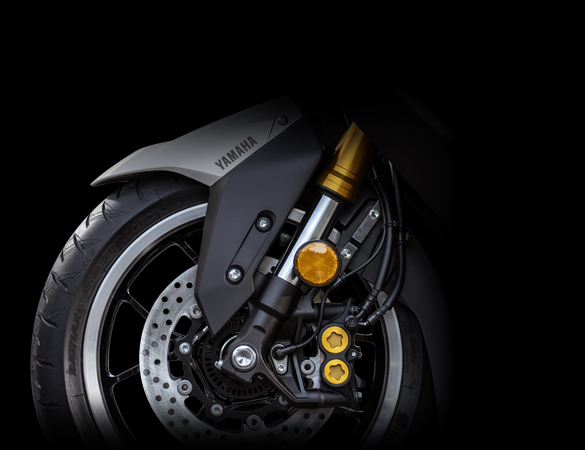

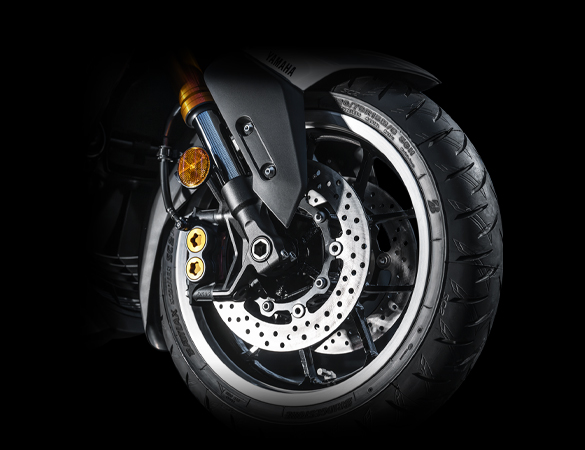

Lightweight Spinforged

Wheels

10-spoke wheels and speciality designed Bridgestone tyres providing a sportier ride.

New

Windscreen

Electronically adjustable windscreen for added comfort from wind pressure during high speeds.

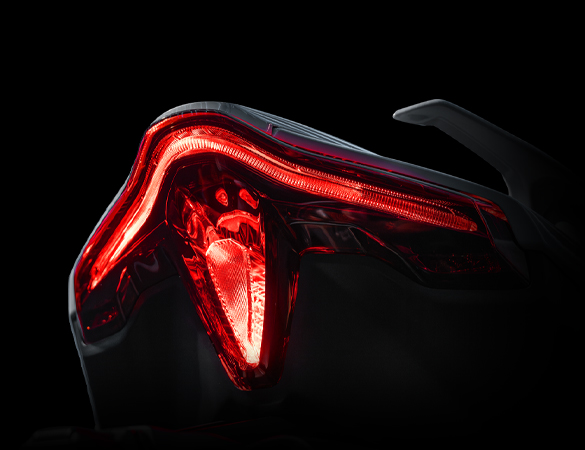

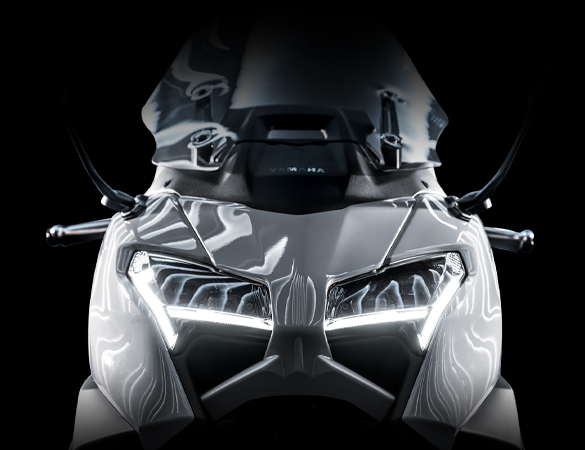

LED Combination Lights

(Front & Rear)

Bold looking combination, mono-focus lens headlamps with turn signals and unique t-shaped taillight gives it a futuristic look.

Smart

Fuel Cap

Aircraft-styled electrically operated fuel tank cap that can be opened when the hinge is pulled up within two minutes of turning off the bike’s main power. An alarm will sound if the cap is not closed properly when it’s powered up.

Full-Colour 7-inch

TFT Meter panel

Easy to read meter panel with lots of information featuring 3 display modes and smartphone compatibility.

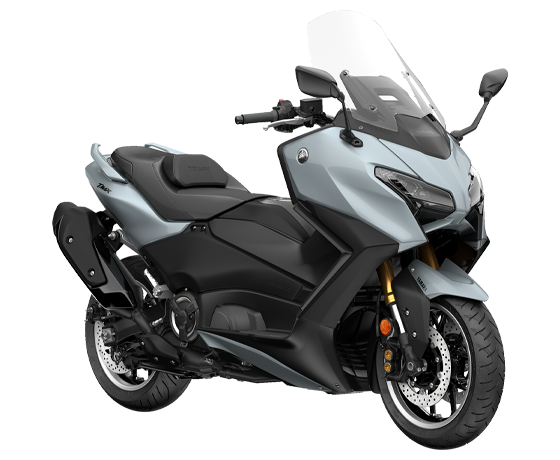

Specification

Motorcycle

Specification

null

Engine

Type Liquid cooled, 4-stroke, DOHC, 4-valve, In-line
Cylinders 2 Cylinder
Displacement 562 cc
Bore x stroke 70.0 mm x 73.0 mm
Compression ratio 10.9:1
Maximum power 35.0 kW @ 7,500 rpm
Maximum torque 55.7 Nm @ 5,250 rpm
Lubrication System Dry Sump
Fuel system Fuel injection
Ignition system TCI
Starter system Electric

Transmission

Transmission system V-Belt Automatic

Chasis

Overall length 2,195 mm
Overall width 780 mm
Overall height 1,415 – 1,525 mm
Seat height 800 mm
Wheelbase 1,575 mm
Minimum Ground Clearance 135 mm
Wet weight 220 kg
Fuel tank capacity 15.0 L

Brakes

Front brake Hydraulic dual disc brake
Rear brake Hydraulic single disc brake

Suspension

Front Suspension Type Telescopic forks
Rear Suspension Type Swingarm (link suspension)

Tires

Front Tyre 120/70R15M/C 56H Tubeless
Rear Tyre 160/60R15M/C 67H Tubeless
